Phthalate-Free Banner

Width (mm)

Height (mm)

Sides *
Material *
Edges *
Shape
Pockets
Eyelets
Pocket Left
Pocket Right
Pocket Top
Pocket Bottom
Taping
Velcro
Double Sided Tape
Foam Tape
Drill Holes
£0.00

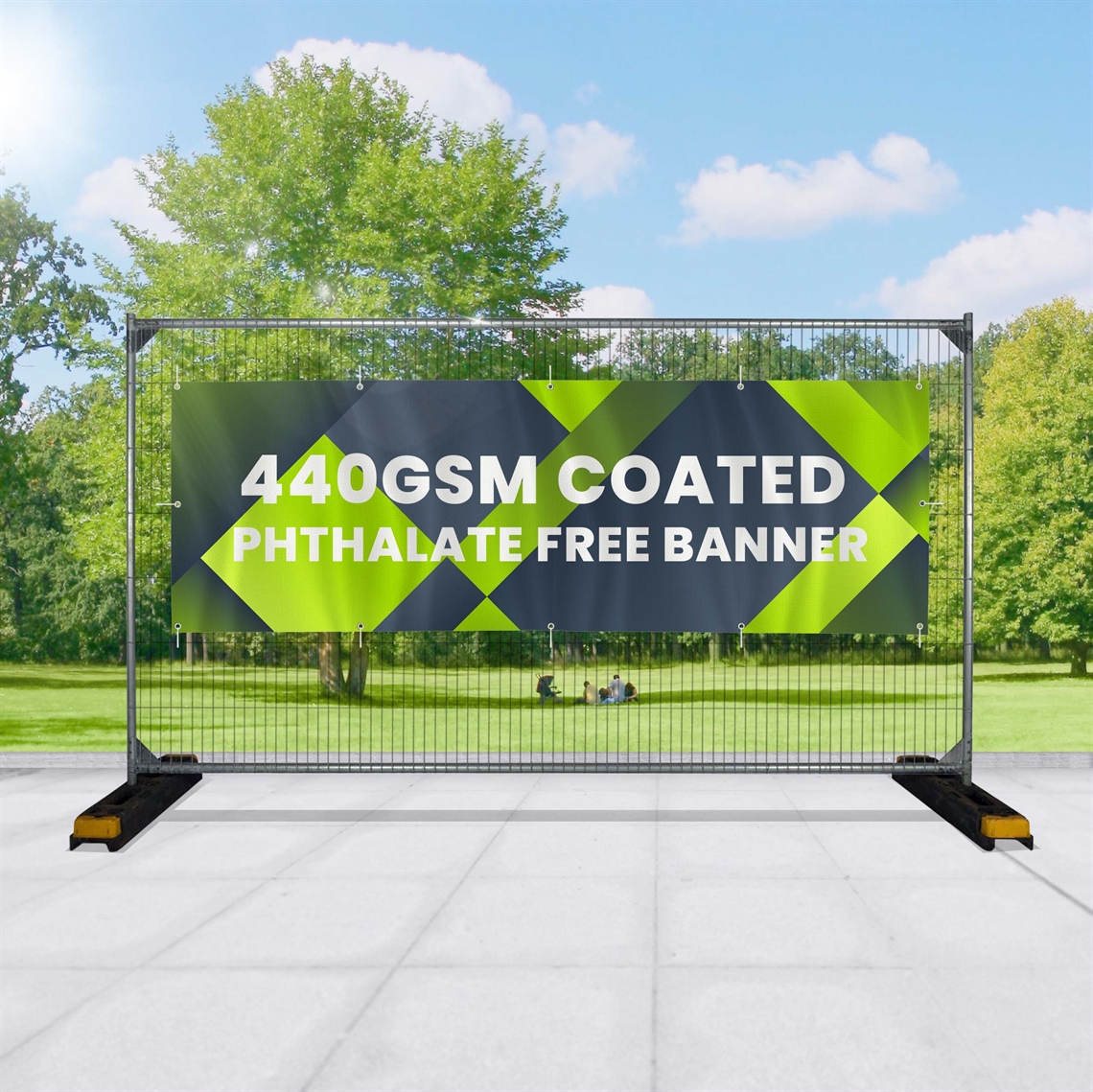

440gsm Coated Phthalate Free Coated Frontlit FR



440gsm Coated Phthalate Free Coated Frontlit FR is an alternative to typical banner vinyls because it is made without phthalate, the component of banner vinyl which isn't naturally broken down when in landfill.

Need more information?
Explore our Frequently Asked Questions.


Need trade pricing?
Register for your trade account.

Specifications

Overview

Print Process : Latex
Sizes : Up to 3150mm wide x 25m
Weight : 440gsm
Lead Time : 3 – 5 working days standard, express service available
Fire Rating : TBC
Commodity Code: 5903109000

Description

440gsm Coated Phthalate Free Coated Frontlit FR is another alternative to our standard 440gsm PVC banner vinyl. It has the added benefit compared to the Luna PVC-free TPO of having a coated finish and is slightly heavier at 440gsm. This material has the same finishing options as our normal banner vinyl PVC, including welded edges, double fold welded edges and trim to size. If you’d like to see the options available for pockets, taping, cut shapes and drill holes then choose ‘Trim Edges’ above. If you require a double sided banner then choose our 610gsm Blockout PVC Banner.

How is it printed?

All of our banners are printed on our HP Latex 3200 or HP Latex 3600. Once they are printed we use our Zund CNC digital cutter to cut them to size - allowing extra material for hems and pockets. The banners are then passed over to our finishing department who will weld, tape and stitch until they reach your brief and are ready to despatch.

Finishing Options



Finishing Options
Weld

Our most popular option for the edge of banner is a single weld (also called a hem). This is where the edge of the banner is folded over 25mm and sealed with a heat roller.

We can also offer a double fold, where the material is cut oversized and folded twice to create the hem for extra strength.

Alternatively, if you need velcro, taping or any kind of shape then 'Trim to Size' is the best option.

Custom Shapes If you would like to have your banner cut to a custom shape then use the 'Trim to Size' option and then select either simple shape (for squares, triangles or rectangles) or complicated shape for any other style. Please note artwork must be supplied with a cutter guide as a spot colour on a separate layer to achieve different shapes.
Drill Holes Choose 'Trim to Size' and then either 4mm in each corner, 6mm in each corner or custom.
Eyelets The most common spacing for eyelets is every 500mm, but any spacing can be achieved if you choose 'Custom' as the option.
Pockets Choose 'Trim Edges' to show the pocket options. All of our pockets are setup as included in the finished size.
Taping Choose 'Trim Edges' to show the taping options. We have the option of velcro, double sided tape and foam tape.

Resources

440gsm Coated Phthalate Free Coated Frontlit FR

Format Size Download Link
PDF Artwork Guidelines Download
PDF Material Specification Sheet Download

Eco Friendly Alternatives

Over the last 5 years we have seen a big movement away from traditional
PVC banners and the market has moved towards fabric alternatives.

We can offer the same range of finishing options on fabrics as we can on PVC,
but with the added benefit of dye sublimation printing which is a 'greener' print
process and polyester fabrics which can be recycled at specialist recycling centres.

Have a look at our range of fabric printing options to see what is available, and if you have any questions please get in touch with the team.
